The biggest advantage is Energy Density. A single 21700 cell can hold up to 5000mAh, whereas an 18650 cell typically maxes out around 3500mAh. This means to get 10,000mAh of capacity at 3.7V, you would need three 18650 cells (1S3P), but only two 21700 cells (1S2P). Fewer cells mean a simpler, lighter, and inherently more reliable battery pack.

Surprisingly, no. While an individual 21700 cell is larger (21x70mm vs 18x65mm), a 2-cell 21700 pack (e.g., 10,000mAh) often takes up slightly less overall volume and requires less nickel stripping and holder material than a 3-cell 18650 pack of the same capacity. We can provide 3D models to show how it fits your specific device.

Both formats use similar lithium-ion chemistry and are incredibly safe when manufactured and managed correctly. However, from a pack design perspective, using fewer cells in parallel (like a 21700 pack) reduces the number of connections and the complexity of the balancing circuit, which statistically reduces the potential points of failure.

Absolutely. Every rechargeable lithium-ion battery, whether it’s a single cell or a massive parallel array, must have a PCM/BMS. It is the critical safety component that prevents catastrophic failures from over-charging, over-discharging, and external short circuits.

We use a rigorous process called Cell Matching. Before assembly, automated machines test and sort every 21700 cell. We only group cells with nearly identical Internal Resistance (IR) and Capacity into the same pack. This ensures they charge and discharge at the exact same rate, preventing one cell from overworking and failing prematurely.

Yes. We source top-tier 21700 cells with capacities up to 5000mAh. A 1S2P pack using these cells provides a massive 10,000mAh (10Ah) at 3.7V in a very compact, two-cylinder footprint—ideal for high-endurance IoT gateways or premium portable speakers.

This depends entirely on the specific 21700 cell chosen and the design of the PCM/BMS. Some 21700 cells are optimized for capacity (lower current), while others are “High-C” cells optimized for power (high current, e.g., 30A+). When cells are in parallel (e.g., 1S2P), their current capabilities add together. We will engineer the pack and select the cells based on your device’s specific amp draw.

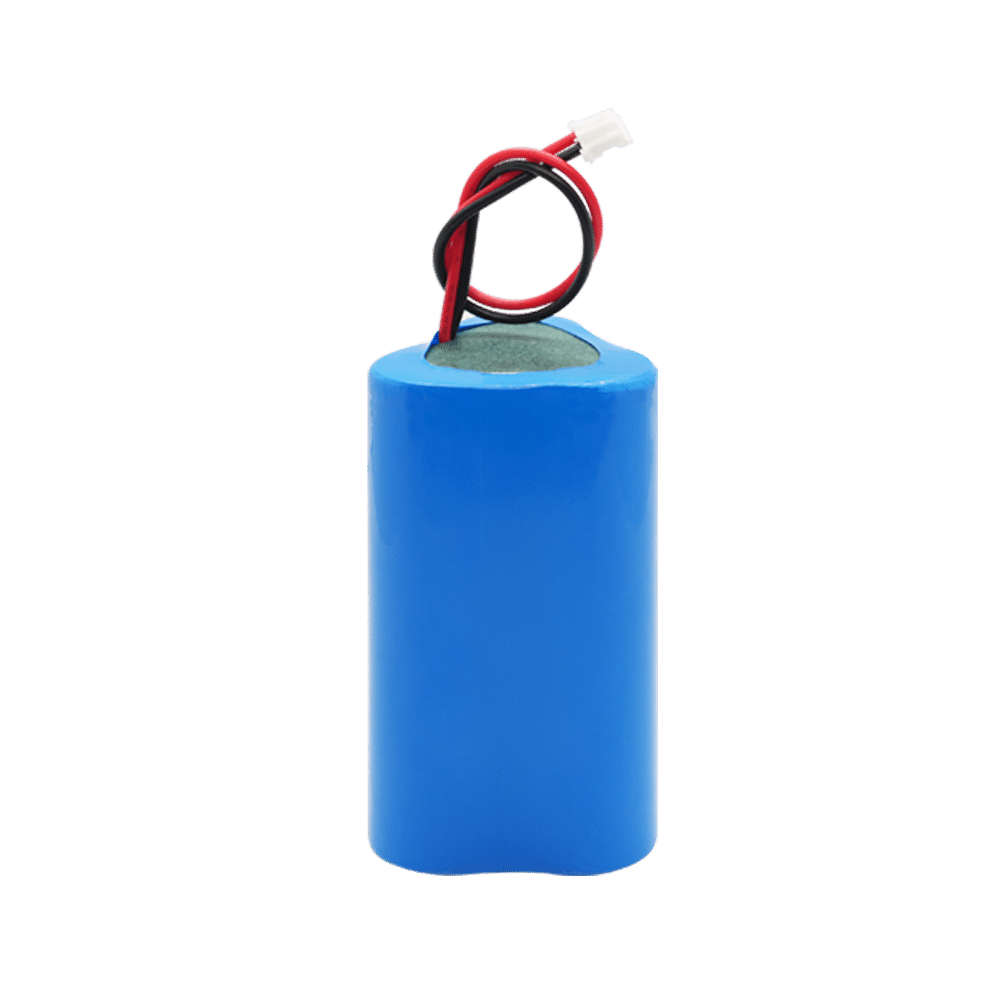

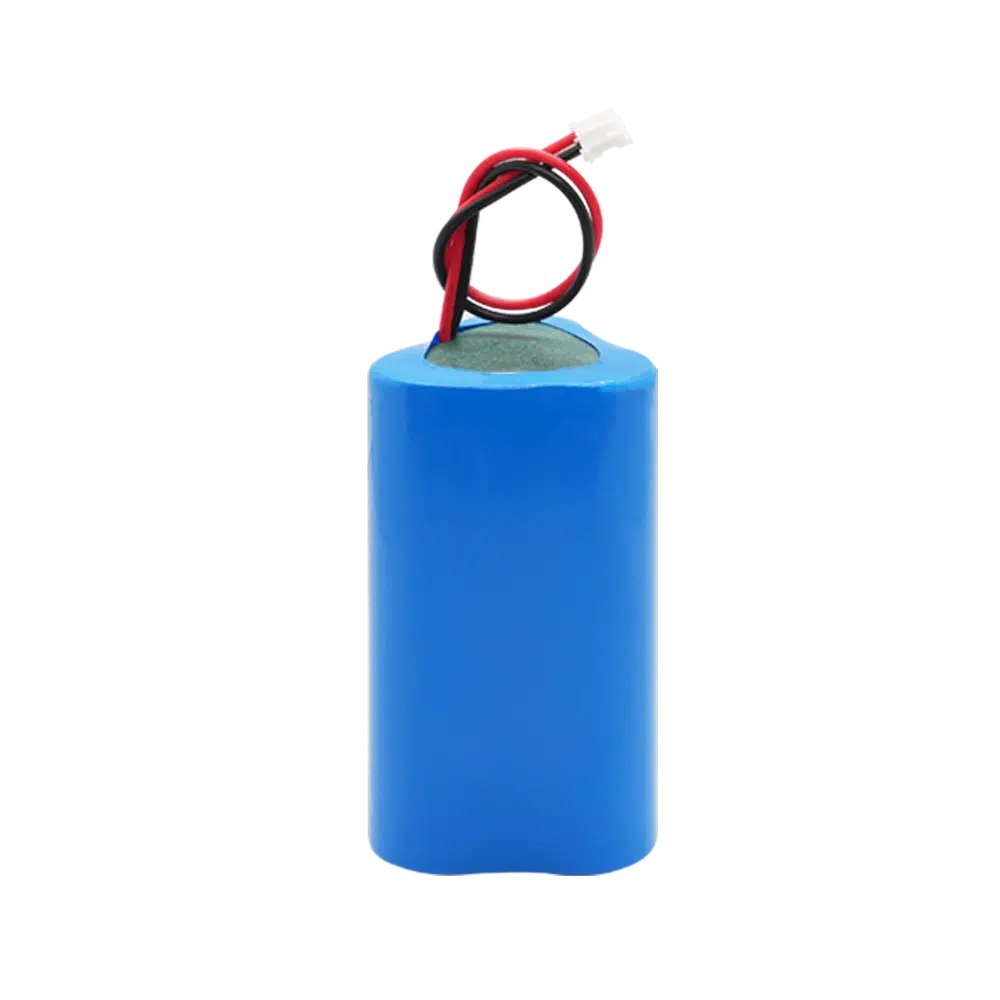

Yes. The cylindrical format gives us great geometric flexibility. For a 3-cell (1S3P) pack, we can arrange them side-by-side (flat), end-to-end (a long stick), or in a triangular block to perfectly utilize the available space inside your product’s housing.

Our MOQ for a custom-engineered 21700 pack (including cell matching, custom PCM, and specific connectors/wiring) typically starts from 10,000 units for professional B2B applications.

To provide an accurate, fast, and safe design, our engineers need the following details during our initial consultation:

1. Target Capacity (mAh or Ah): How long must the device operate on a single charge?

2. Continuous & Peak Discharge Current (Amps): The most critical factor for cell selection and PCM rating.

3. Charging Parameters: The voltage and maximum current (Amps) your device uses to charge the battery.

4. Maximum Dimensions: The exact L x W x H of the battery compartment.

5. Wiring & Connector: Required wire gauge (AWG), length, and specific connector type (e.g., JST, Molex).

6. Estimated Annual Volume.
