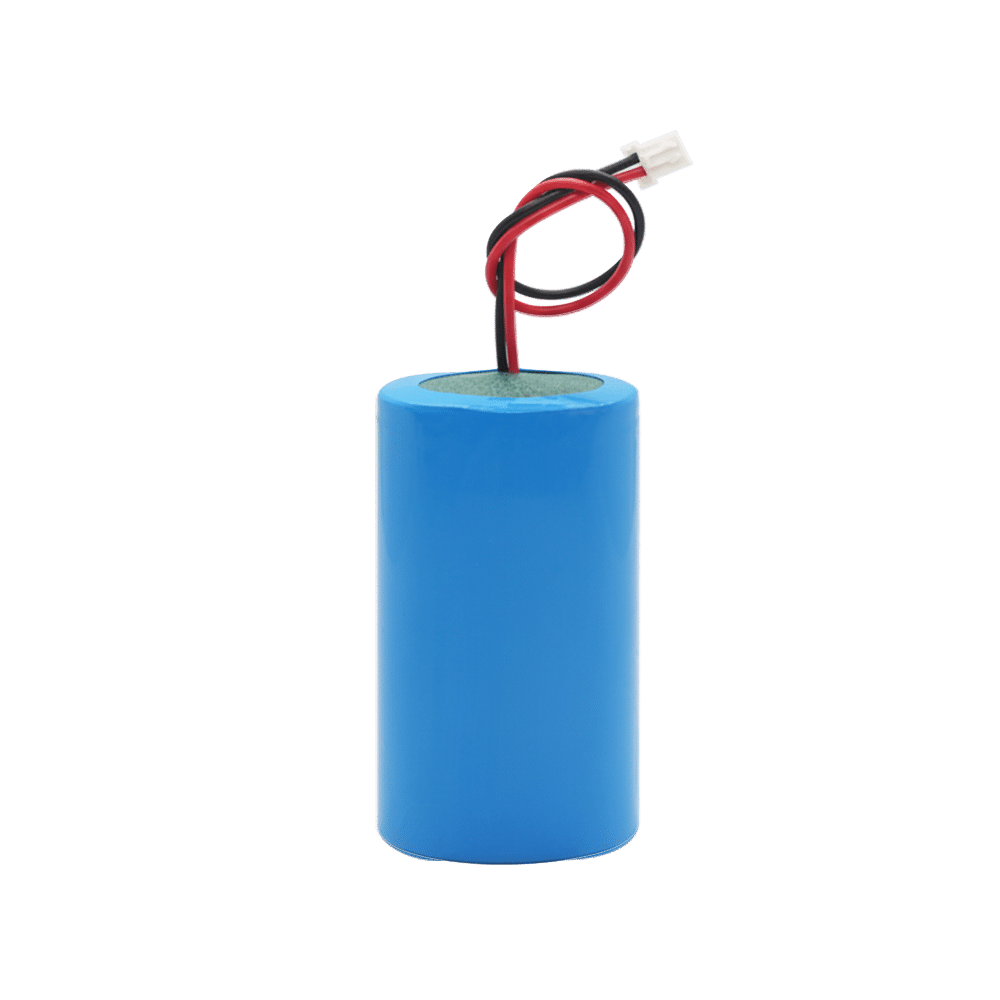

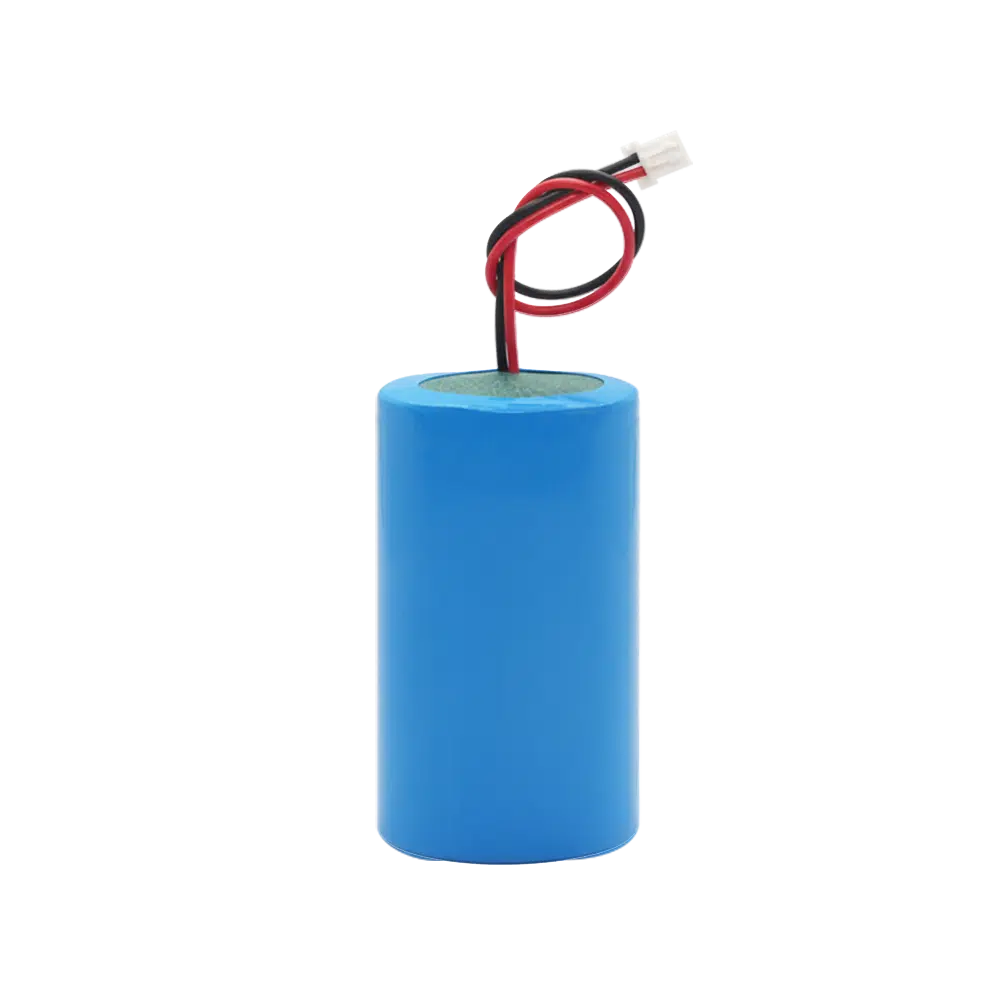

The primary reason is to achieve the same or higher capacity with fewer cells. For example, a 7.4V 5000mAh pack using 18650s requires 4 cells (2S2P). Using high-capacity 21700s, we achieve the exact same 7.4V 5000mAh with just 2 cells (2S1P). This reduces the pack’s footprint, lowers weight, simplifies the BMS, and significantly increases reliability by halving the number of connections.

Yes. A single 21700 cell weighs roughly 70g (total 140g for two). A single 18650 cell weighs roughly 45g (total 180g for four). Plus, you save weight on the extra nickel strips, wiring, and holder materials needed for a 4-cell pack. The 21700 2S1P is the undisputed winner for power-to-weight ratio at 5000mAh.

The fundamental balancing and protection functions are the same. However, because 21700 packs often handle higher total capacities and potentially higher continuous discharge currents, the BMS components (like the MOSFETs and the balancing current rating) must be specified to safely manage the increased power throughput of the 21700 cells.

In a series circuit, both cells experience the exact same current. If they are not perfectly matched, or if they age differently, one cell will reach its maximum charge voltage (4.2V) or minimum discharge voltage (3.0V) before the other. A high-quality BMS with an active or passive balancing function constantly monitors each cell and equalizes their voltages, which is vital for preventing damage and maximizing the pack’s lifespan.

Absolutely. This “stick” or “baton” configuration is extremely popular for flashlights, electronic gimbals, and power tool handles. We use robust welding techniques and structural shrink-wrap to ensure the end-to-end connection is strong and reliable.

Since it consists of two lithium-ion cells in series (2S), the maximum charge voltage is exactly 8.4V (2 x 4.2V). You must use a dedicated 8.4V charger. Charging it with a standard 5V USB source is not possible without a specialized boost-converter circuit on your device’s mainboard.

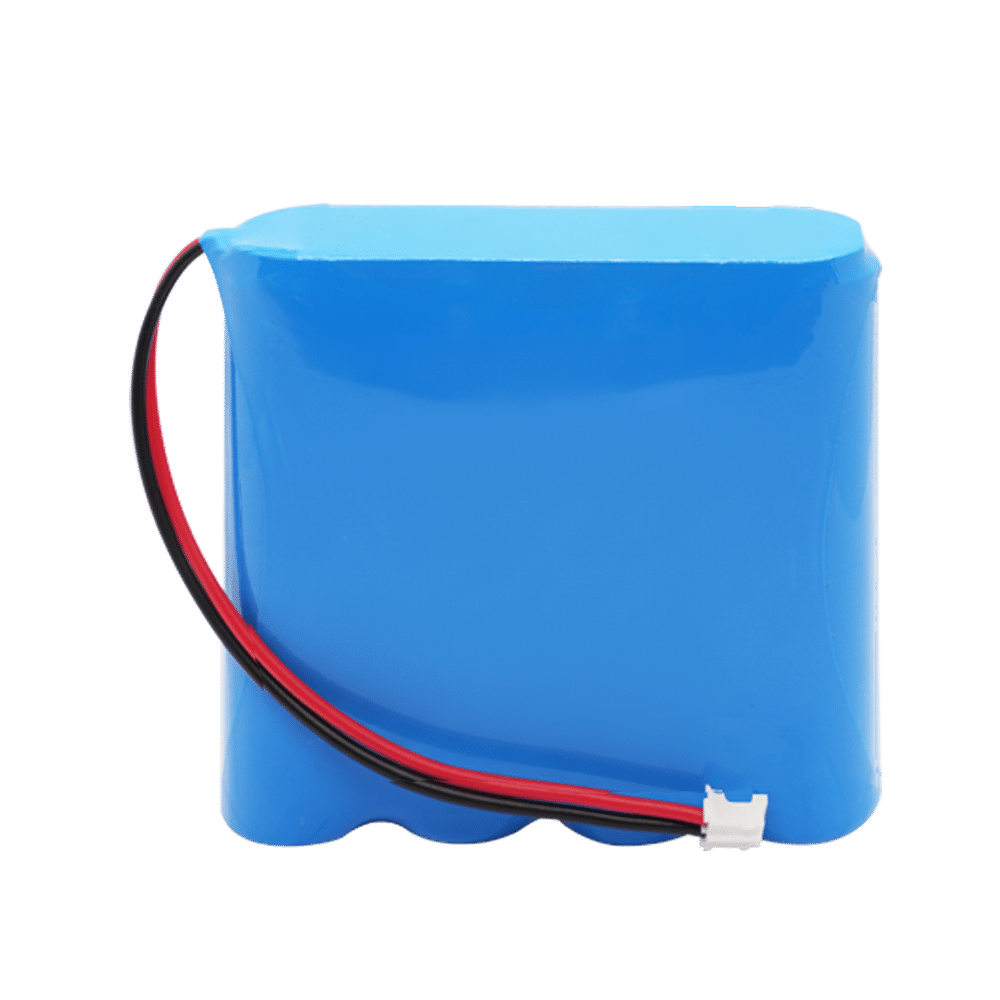

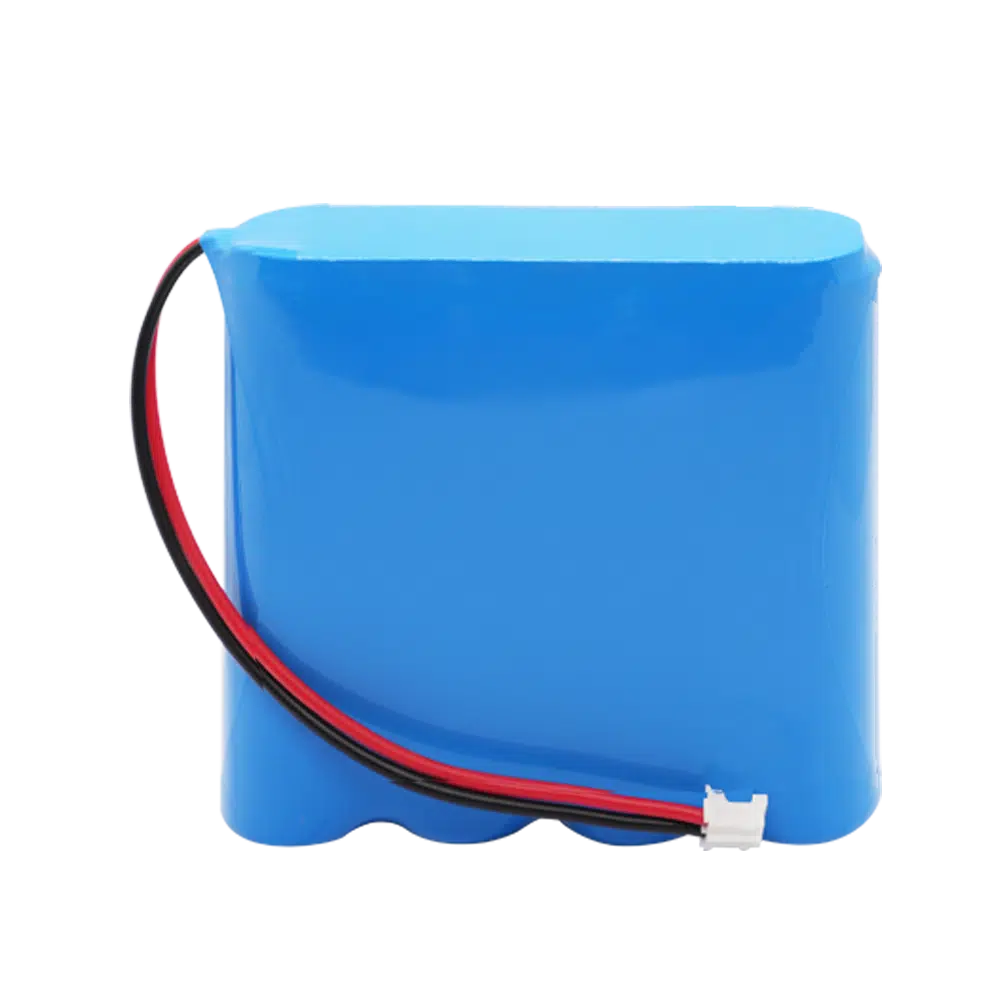

For extremely high continuous discharge (like heavy-duty power tools), relying on a single string (2S1P) of even the best high-discharge 21700 cells might push them to their thermal limits. We would recommend a 2S2P or 2S3P configuration using high-drain 21700 cells (e.g., 3000mAh or 4000mAh per cell). This parallel structure shares the massive 30A load, keeping the cells cooler, reducing voltage sag, and greatly extending the pack’s life.

Our Minimum Order Quantity (MOQ) for custom-engineered multi-cell packs (which includes cell matching, a custom BMS, and specific connectors/wiring) typically starts from 10,000 units for professional B2B applications.

Yes. All lithium-ion battery packs must pass UN38.3 testing to be legally transported by air or sea. We manage this rigorous testing and certification process for all custom packs we build, providing you with the necessary documentation for global logistics.

1. Target Capacity (mAh or Ah): Determines the runtime and whether we use a 2S1P or 2S2P+ configuration.

2. Continuous & Peak Discharge Current (Amps): The most critical factor; it determines if we need high-discharge cells and dictates the power rating of the BMS and wiring.

3. Maximum Dimensions: The exact L x W x H of your battery compartment, so we can determine the optimal layout (e.g., side-by-side vs. end-to-end stick).

4. Charging Parameters: The charging voltage (8.4V) and current (A) your system provides, so we match the BMS accordingly.

5. Wiring & Connector: Required wire gauge (AWG), length, and specific connector type (e.g., JST, XT30) ensuring the prototype is plug-and-play ready.

6. The Application & Environment: Knowing if it’s for a medical device indoors or a power tool outdoors helps us understand requirements for durability, temperature range, and safety certifications.
